SYSTEMS NEED A COMMON LANGUAGE.
XT Series Universal Gateways
The new generation of the MBS Universal Gateway Platform.
Building automation continues to evolve.
Systems are becoming more interconnected.
Data volumes are growing.
And the demands for performance and security are increasing.
The XT Series builds on the proven functionality of the MBS Universal Gateways with a new generation of hardware. Compared to the X Series, a more powerful CPU and expanded memory provide additional capacity for demanding integration tasks.
The integrated secure element provides the hardware foundation for digital certificates and other security features.
The XT Series is being introduced in phases. Until the respective market launch, the corresponding X Series Universal Gateway will continue to be available for the models marked as such on this page.
One platform. Various bus connections.
All XT Series Universal Gateways are based on the same hardware and software platform. At the heart of the system is the Data Point Manager. It retrieves data from the respective source protocol and makes it available to one or more target protocols.
The communication protocols are processed via software. Depending on the project, protocols such as BACnet, Modbus, MQTT, or OPC UA can be combined. The individual XT gateways differ in terms of their integrated bus interfaces. This allows for the direct connection of KNX, DALI2, M-Bus, or PROFINET systems, among others.
A common operating principle. | Different hardware configurations. | Tailored to each project.
Which XT Series gateway is right for your project?
The selection of the appropriate gateway model depends primarily on which systems are to be physically connected. If no additional bus connections are required, the Universal Gateway Core serves as the basis. For direct connection to a bus system or an additional IP range, appropriately equipped Core+ models are available.
Quick Selection
| What would you like to connect? | Compatible XT model | availability | Latest X-Series Solution |
|---|---|---|---|
| IP-based protocols without an additional bus connection | Core | Available now | – |
| CAN Systems | Core + CAN | Starting in October 2026 | Universal CAN Gateway |
| KNX Systems | Core + KNX | Starting in October 2026 | Universal KNX Gateway |
| DALI2 Lighting Systems | Core + DALI2 | Starting in May 2027 | Universal Gateway DALI2 |
| M-Bus Meters and Systems | Core + M-Bus | Starting in the spring of 2027 | Universal M-Bus Gateway |
| PROFINET Systems | Core + PROFINET | Available now | – |
| Two separate IP ranges | Core + X-Link | Starting in October 2026 | Universal Gateway X-Link |
| PROFINET and M-Bus Systems | Core + PROFINET + M-Bus | Starting in the spring of 2027 | Universal Gateway PROFINET + M-Bus |
| PROFINET and KNX Systems | Core + PROFINET + KNX | Available now | – |
| KNX and M-Bus Systems | Core + KNX + M-Bus | Starting in the spring of 2027 | Universal KNX + M-Bus Gateway |
| PROFINET and DALI2 Systems | Core + PROFINET + DALI2 | Starting in May 2027 | Universal Gateway PROFINET + DALI2 |
The required source and destination protocols—such as BACnet/IP, Modbus TCP, MQTT, or OPC UA—as well as the data point capacity are then configured to meet the project's requirements.
XT Series Gateways at a Glance
XT Series Universal Gateway
Core
The Foundation for IP-Based Integration
The Universal Gateway Core connects IP-based communication protocols and is suitable for projects in which building automation, energy management, industrial, or IT systems are integrated without the need for additional direct bus connections.
Available now
Discover the XT Series Universal Gateway Core ›
XT Series Universal Gateway
Core + CAN
Integrating CAN Systems into Higher-Level Automation Solutions
The Universal Gateway Core + CAN connects CAN-based devices and networks directly to the MBS Universal Gateway platform. It is suitable for integrating CAN data into industrial automation solutions, building automation, and higher-level management systems.
Available starting in October 2026
Until its market launch, the X-Series Universal Gateway CAN will continue to be available. Discover the X-Series Universal CAN Gateway ›
XT Series Universal Gateway
Core + KNX
Making KNX Data Available Across Systems
The Universal Gateway Core + KNX connects KNX systems directly to the MBS Universal Gateway platform. It is designed to integrate room automation and building technology with higher-level automation and management systems.
Available starting in October 2026
Until its market launch, the X-Series Universal KNX Gateway will continue to be available. Discover the X-Series KNX Universal Gateway ›
XT Series Universal Gateway
Core + DALI2
Integrate Lighting into the Overall System
The Universal Gateway Core + DALI2 connects DALI2 lighting systems directly to the MBS Universal Gateway platform. It is suitable for projects in which lighting needs to be integrated with building automation, energy management, or higher-level management systems.
Available starting in May 2027
Until its market launch, the X-Series Universal Gateway DALI2 will continue to be available. Discover the X-Series Universal Gateway DALI2 ›
XT Series Universal Gateway
Core + M-Bus
Centralize consumption and metering data
The Universal Gateway Core + M-Bus connects meters and M-Bus infrastructures directly to the MBS Universal Gateway platform. It is suitable for energy management, consumption tracking, and the centralized analysis of technical building data.
Available starting in spring 2027
Until its market launch, the X-Series Universal M-Bus Gateway will continue to be available. Discover the X-Series Universal M-Bus Gateway ›
XT Series Universal Gateway
Core + PROFINET
Combining Industrial and Building Automation
The Universal Gateway Core + PROFINET connects industrial automation systems directly to the MBS Universal Gateway platform. It is suitable for projects in which production processes and technical building equipment are intended to interact with building automation, energy management, or IT systems.
Available now
Discover the XT Series Universal Gateway Core + PROFINET ›
XT Series Universal Gateway

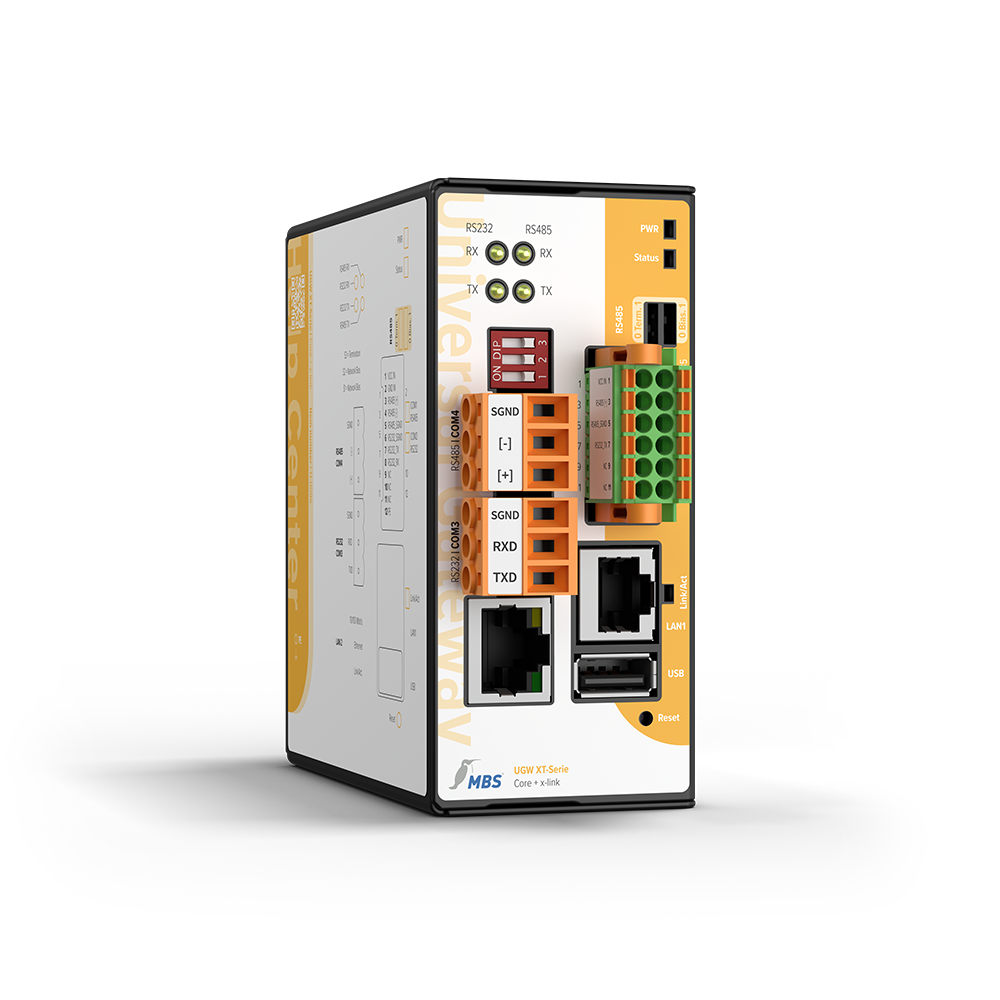

Core + X-Link
Connecting Separate IP Ranges Within a Gateway Solution
The Universal Gateway Core + X-Link connects two separate IP networks via two network ports. It is suitable for projects in which data from different network structures is to be processed within a common gateway platform.
Available starting in October 2026
Until its market launch, the X-Series Universal Gateway X-Link will continue to be available. Discover the X-Series Universal Gateway X-Link ›
XT Gateways with Combined Bus Connections
If a project requires more than one direct bus connection, combined versions of the XT series are available. They integrate multiple bus systems within a single gateway platform.
XT Series Universal Gateway
Core + PROFINET + M-Bus
Sharing Industrial and Consumption Data
The Universal Gateway Core + PROFINET + M-Bus connects industrial automation systems and M-Bus meters within a single platform. It is suitable for projects in which production, consumption, and energy data need to be consolidated centrally.
Available starting in spring 2027
Until its market launch, the X-Series Universal Gateway PROFINET + M-Bus will continue to be available. Discover the X-Series PROFINET + M-Bus Universal Gateway ›
XT Series Universal Gateway
Core + PROFINET + KNX
Bringing Industry and KNX Building Automation Together
The Universal Gateway Core + PROFINET + KNX connects industrial automation systems and KNX-based building automation within a single platform. It is suitable for projects in which production processes, room automation, and higher-level management systems are intended to work together.
Available now
Discover the XT Series Universal Gateway Core + PROFINET + KNX ›
XT Series Universal Gateway
Core + KNX + M-Bus
Linking Building Systems and Usage Data
The Universal Gateway Core + KNX + M-Bus integrates KNX-based building automation with consumption and metering data from M-Bus systems. It is suitable for integrated solutions combining room automation, consumption tracking, and energy management.
Available starting in spring 2027
Until its market launch, the X-Series Universal Gateway KNX + M-Bus will continue to be available. Discover the X-Series Universal KNX + M-Bus Gateway ›
XT Series Universal Gateway
Core + PROFINET + DALI2
Integrating Industry and Lighting Together
The Universal Gateway Core + PROFINET + DALI2 connects industrial automation systems and DALI2 lighting within a single platform. It is suitable for projects in which production areas, lighting, and higher-level automation systems are to be controlled and monitored together.
Available starting in May 2027
Until its market launch, the X-Series Universal Gateway PROFINET + DALI2 will continue to be available. Discover the X-Series PROFINET + DALI2 Universal Gateway ›
Product Information – As of August 2026
Do you already know which systems you want to connect?
Configure the appropriate universal gateway ›
Still not sure which one to choose?
Request a personal consultation ›
Frequently Asked Questions About the XT Series
-
The XT Series builds on the proven operating principle of the MBS Universal Gateways with a new generation of hardware. A more powerful CPU and expanded memory provide additional capacity for demanding integration tasks. The integrated secure element also serves as the hardware foundation for digital certificates and other security features. The software-based protocol processing and the central data point manager remain core features of the proven design.
-
The Universal Gateway Core is suitable for integrations that rely exclusively on IP-based communication protocols. If a bus system such as KNX, DALI2, M-Bus, PROFINET, or CAN is to be connected directly, an XT variant with the corresponding integrated bus interface is required. Combined variants are available for the direct connection of multiple bus systems.
-
BACnet, Modbus, MQTT, and OPC UA are processed via software in the MBS Universal Gateways and configured to suit the specific project. The terms KNX, DALI2, M-Bus, PROFINET, and CAN, on the other hand, refer to the gateway’s physical bus connection. Therefore, the selection of the gateway variant is primarily based on the systems to be directly connected.
-
Yes. The central data point manager retrieves data from the respective source protocols, assigns it to the desired data points, and makes it available to one or more target protocols. This allows, for example, BACnet, Modbus, MQTT, or OPC UA to be combined with one another. Models with multiple integrated bus interfaces also enable the direct connection of several bus systems.
-
The XT series will be introduced in phases:
Universal Gateway Core, PROFINET, and PROFINET + KNX are already available.
CAN, KNX, and X-Link will follow starting in October 2026.
M-Bus, PROFINET + M-Bus, and KNX + M-Bus will follow starting in the spring of 2027.
DALI2 and PROFINET + DALI2 will follow starting in May 2027.
For appropriately labeled variants, the corresponding X-Series Universal Gateway will continue to be available until the respective product launch.
Connections on Which Building Automation Can Be Built
For over 35 years, MBS has been developing solutions for cross-vendor communication in building automation—ranging from universal gateways and BACnet routers to software and custom development, as well as its own accredited testing laboratory.
